iiyama ProLite Open Frame PCAP 30-point Touch monitor with AG coating equipped with a foam seal finish for seamless integration
In stock
SKU
TF3215MC-B2AG
Open Frame PCAP 30-point Touch monitor with AG coating equipped with a foam seal finish for seamless integration

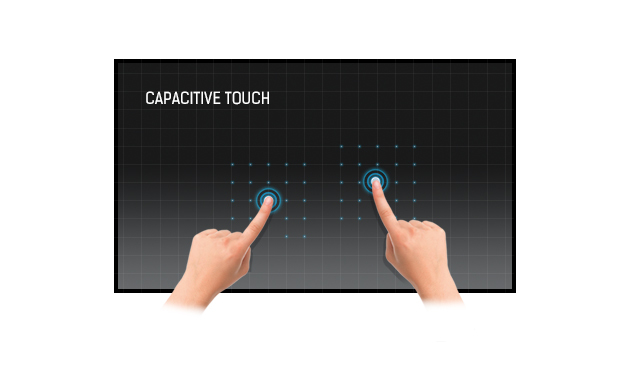

Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

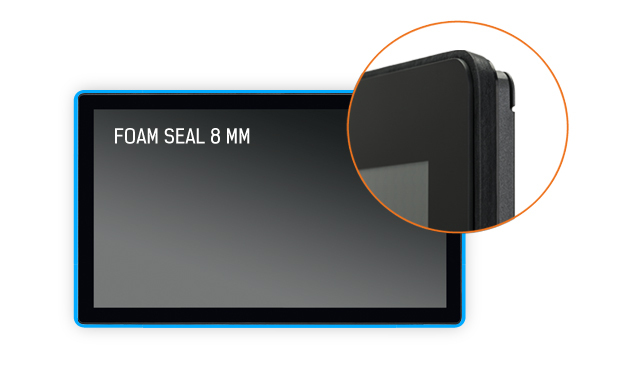

Foam Seal
A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.

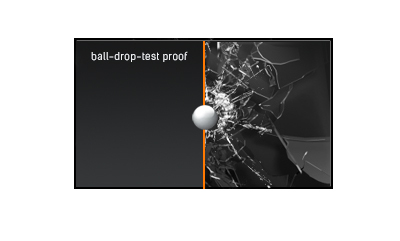

Ball-drop-test proof
The ball-drop-test uses a half-kilo steel ball, which is dropped onto the touch screen from a height of 1.3 meter. If the touch screen surface remains unaffected, the monitor passes the ball-drop-test for high impact resistance and durability.
Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
24/7
24/7 displays are designed for a continuous operation.
The ProLite TF3215MC-B2AG uses PCAP Touch technology and is built into an eye-catching bezel with edge-to-edge anti-glare coated glass drastically reducing ambient reflections in high-brightness environments without compromising the sharpness and clarity of the image. The rugged bezel equipped with a foam seal finish supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front making it perfect for high use public facing applications. Landscape and portrait orientation ensures flexible mounting possibilities in almost any installation. The TF3215MC-B2AG is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 500 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| HD type | Full HD |
| Display technology | LED |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.3637 x 0.3637 mm |
| Viewable size, horizontal | 69.8 cm |
| Viewable size, vertical | 39.3 cm |
| Digital horizontal frequency | 30 - 68 kHz |
| Display resolution | 1920 x 1080 pixels |
| Response time | 8 ms |
| Display diagonal | 80 cm (31.5") |
| Contrast ratio (typical) | 3000:1 |
| Surface hardness | 6H |
| Touchscreen type | Kiosk |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 30 |
| Panel type | VA |
| Display diagonal (metric) | 80 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Anti-glare screen | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Plug and Play | Yes |
| Performance | |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Operating hours (hours/days) | 24/7 |
| Design | |
| Market positioning | Business |
| Product colour | Black |
| International Protection (IP) code | IP65 |
| Housing material | Metal |
| Glass thickness | 6 mm |
| IK code | IK07 |
| Ports & interfaces | |
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| Technical details | |
| Height (without stand) | 437 mm |
| Depth (without stand) | 61 mm |
| Width (without stand) | 745.5 mm |
| HDMI | Yes |
| Product colour | Black |
| Compliance certificates | REACH |
| Surface hardness | 6H |
| Touchscreen type | Kiosk |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 30 |
| Ergonomics | |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 200 x 200 mm |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Plug and Play | Yes |
| Cable management | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 32 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 27 kWh |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Height (without stand) | 437 mm |
| Depth (without stand) | 61 mm |
| Width (without stand) | 745.5 mm |
| Weight (without stand) | 10 kg |
| Package width | 890 mm |
| Package depth | 155 mm |
| Package height | 630 mm |
| Package weight | 12.8 kg |
| Packaging data | |
| Package width | 890 mm |
| Package depth | 155 mm |
| Package height | 630 mm |
| Package weight | 12.8 kg |
| Quick start guide | Yes |
| Cables included | AC, HDMI, USB |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, HDMI, USB |
| Other features | |
| International Protection (IP) code | IP65 |
| IK code | IK07 |
| Compliance certificates | REACH |
| Height (without stand) | 437 mm |
| Depth (without stand) | 61 mm |
| Width (without stand) | 745.5 mm |
| Quick start guide | Yes |
| HDMI | Yes |
| Surface hardness | 6H |
| Energy efficiency scale | A to G |
| Touchscreen type | Kiosk |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 30 |
