Be the first to review this product
iiyama TF2438MSC-B1 computer monitor 60.5 cm (23.8") 1920 x 1080 pixels Full HD LED Touchscreen Black
In stock
SKU
TF2438MSC-B1
23.8” 10pt Optical Bonded PCAP Open Frame Touch monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing
- OPTICAL BONDED PCAP
- OPEN FRAME LFD
- IPS TECHNOLOGY
- SCRATCH RESISTANCE
- SPEAKERS
| HD type | Full HD |
|---|---|
| Display Technology | LED |
| Display brightness | 600cd/m² |
| Product design | Digital A-board |
| SKU | TF2438MSC-B1 |
| EAN | 4948570121113 |
| Manufacturer | iiyama |
| Availability | In Stock |
Optical bonded PCAP
The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.
IPS Technology
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
Open frame LFD
Open frame monitors feature special mounting screw holes on all sides of the monitor that can be used for installing the monitor. Open Frame monitors are an ideal solution for kiosk integrators and Instore Retail.

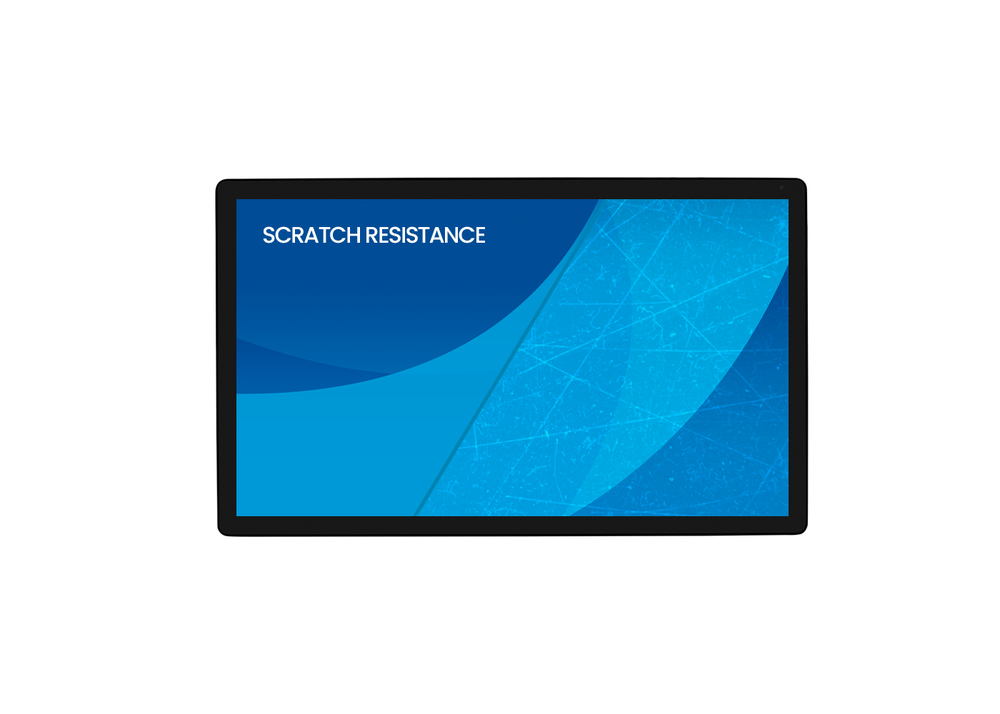

Scratch resistance
Scratch resistance is a critical requirement for touch solutions deployed in commercial, educational, and industrial environments. A protective glass overlay covering the screen provides enhanced durability, ensuring reliable touch performance over time. The touch functionality remains fully operational and unaffected.
Speakers
This LED monitor is equipped with two high quality stereo speakers.
The Full HD (1920x1080) Open Frame monitor ProLite TF2438MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The ProLite TF2438MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for kiosk systems, retail and interactive digital signage installations.
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 600 cd/m² |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| Maximum refresh rate | 60 Hz |
| HD type | Full HD |
| Display technology | LED |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.275 x 0.275 mm |
| Horizontal scan range | 30 - 83 kHz |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Display resolution | 1920 x 1080 pixels |
| Response time | 5 ms |
| Display diagonal | 60.5 cm (23.8") |
| Contrast ratio (typical) | 1000:1 |
| Surface hardness | 7H |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Display diagonal (metric) | 60.5 cm |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 525 cd/m² |
| Response time measurement type | GTG (Gray to Gray) |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Mean time between failures (MTBF) | 50000 h |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, French, Japanese, Dutch, Polish, Russian |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Power | |
| Power cable length | 1.8 m |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.8 W |
| Power consumption (typical) | 22 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Design | |
| Certification | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP1X |
| Glass thickness | 3.6 mm |
| Mean time between failures (MTBF) | 50000 h |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| DVI port | No |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| USB Touch port | Yes |
| Number of downstream ports | 2 |
| Wi-Fi | No |
| Ethernet LAN | No |
| Technical details | |
|---|---|
| Placement supported | Indoor |
| Mean time between failures (MTBF) | 50000 h |
| Product colour | Black |
| User controls | Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch) |
| Front bezel colour | Black |
| Sustainability certificates | ErP |
| Compliance certificates | CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 525 cd/m² |
| Built-in processor | No |
| Power supply type | Internal |
| Active display area (W x H) | 527 x 296.5 mm |
| Weight (with stand) | 6.5 kg |
| Touch method | stylus, finger, glove (latex) |
| Surface hardness | 7H |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Network | |
| Wi-Fi | No |
| Ethernet LAN | No |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, French, Japanese, Dutch, Polish, Russian |
| Cable management | Yes |
| Weight & dimensions | |
| Width (with stand) | 561.5 mm |
| Depth (with stand) | 47.5 mm |
| Height (with stand) | 337 mm |
| Bezel width (side) | 1.73 cm |
| Bezel width (top) | 2.03 cm |
| Bezel width (bottom) | 2.03 cm |
| Weight (with stand) | 6.5 kg |
| Package width | 635 mm |
| Package depth | 115 mm |
| Package height | 409 mm |
| Package weight | 8.1 kg |
| Width | 561.5 mm |
| Weight | 6.5 kg |
| Height | 337 mm |
| Depth | 47.5 mm |
| Packaging data | |
| Package width | 635 mm |
| Package depth | 115 mm |
| Package height | 409 mm |
| Package weight | 8.1 kg |
| USB cable length | 1.5 m |
| Power cable length | 1.8 m |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI |
| HDMI cable length | 1.5 m |
| Packaging content | |
| Power cable length | 1.8 m |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI |
| HDMI cable length | 1.5 m |
| USB cable length | 1.5 m |
| Sustainability | |
| Sustainability certificates | ErP |
| Other features | |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 525 cd/m² |
| Built-in processor | No |
| Active display area (W x H) | 527 x 296.5 mm |
| USB ports quantity | 2 |
| Placement supported | Indoor |
| Mean time between failures (MTBF) | 50000 h |
| Certification | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| User controls | Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch) |
| Touch method | stylus, finger, glove (latex) |
| International Protection (IP) code | IP1X |
| Width | 561.5 mm |
| Weight | 6.5 kg |
| Height | 337 mm |
| Depth | 47.5 mm |
| Compliance certificates | CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Control panel | Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power |
| Quick start guide | Yes |
| Surface hardness | 7H |
| Power supply type | Internal |
| Power cable length | 1.8 m |
| Ethernet LAN | No |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Front bezel colour | Black |
| Certificates | |
| Certification | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
