Be the first to review this product
iiyama ProLite 10pt touch open frame monitor with Anti-Glare Glass and high brightness
In stock
SKU
TF2234MC-B7AGB
10pt touch open frame monitor with Anti-Glare Glass and high brightness
IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
AG Coating
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

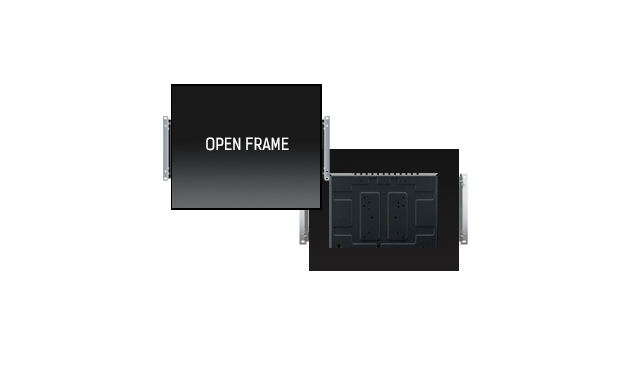

Open frame brackets
This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.
The ProLite TF2234MC-B7AGB uses PCAP Touch technology, and it is built into an eye-catching bezel with edge-to-edge glass. Featuring IPS LCD Screen technology, it offers exceptional colour performance and wide viewing angles. The higher brightness ensures crispy and clear images, even in a bright environment. In addition to the superb image quality, the screen is suitable for demanding environments. It comes with a rugged bezel and IP65 rating, meaning the monitor is dust and water resistant from the front. The Anti Glare Glass helps to avoid issues with reflections and external light sources affecting contrast and sharpness. The ProLite TF2234MC-B7AGB is the ideal screen for kiosk integrators and a superb display for use as Interactive Digital Signage, Instore Retail and Interactive Presentation display. For ease of integration, this monitor can be equipped with optional external mounting brackets ( OMK1-1 ).
| Display | |
|---|---|
| HDCP | Yes |
| Screen shape | Flat |
| Display number of colours | 16.78 million colours |
| Native aspect ratio | 16:9 |
| HD type | Full HD |
| Display technology | LED |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.247 x 0.247 mm |
| Horizontal scan range | 30 - 84 kHz |
| Display resolution | 1920 x 1080 pixels |
| Response time | 8 ms |
| Display diagonal | 54.6 cm (21.5") |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Display diagonal (metric) | 56.4 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 350 cd/m² |
| Performance | |
| Built-in microphone | No |
| Built-in camera | No |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 9 |
| On Screen Display (OSD) languages | German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian |
| Multimedia | |
| Built-in microphone | No |
| Built-in camera | No |
| Design | |
| Product colour | Black |
| International Protection (IP) code | IP65 |
| Glass thickness | 1.5 mm |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| USB Touch port | Yes |
| Technical details | |
| Height (without stand) | 313.5 mm |
| Depth (without stand) | 46 mm |
| Width (without stand) | 517.5 mm |
| Placement supported | Horizontal/Vertical |
| HDMI | Yes |
| Display viewable area (HxV) | 476 x 267.7 mm |
| Built-in microphone | No |
| Product colour | Black |
| Compliance certificates | CE, REACH, RoHS, WEEE |
| Power supply type | DC |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Ergonomics | |
|---|---|
| Wall mountable | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 9 |
| On Screen Display (OSD) languages | German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian |
| Power | |
| Power supply type | DC |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 18 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 19 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 388782 |
| Weight & dimensions | |
| Height (without stand) | 313.5 mm |
| Depth (without stand) | 46 mm |
| Width (without stand) | 517.5 mm |
| Weight (without stand) | 4.4 kg |
| Package width | 610 mm |
| Package depth | 160 mm |
| Package height | 405 mm |
| Package weight | 6.8 kg |
| Packaging data | |
| Package width | 610 mm |
| Package depth | 160 mm |
| Package height | 405 mm |
| Package weight | 6.8 kg |
| Cables included | AC, HDMI, USB |
| Packaging content | |
| Cables included | AC, HDMI, USB |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 388782 |
| Other features | |
| Placement supported | Horizontal/Vertical |
| Display viewable area (HxV) | 476 x 267.7 mm |
| International Protection (IP) code | IP65 |
| Compliance certificates | CE, REACH, RoHS, WEEE |
| Height (without stand) | 313.5 mm |
| Depth (without stand) | 46 mm |
| Width (without stand) | 517.5 mm |
| HDMI | Yes |
| Energy efficiency scale | A to G |
| Power supply type | DC |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
