iiyama ProLite 27” Optical Bonded PCAP 10pt IPS Touchscreen monitor with edge-to-edge glass, active stylus support (MPP 2.0), anti-fingerprint coating and a flexible stand
In stock
SKU
T2755QSC-B1
27” Optical Bonded PCAP 10pt IPS Touchscreen monitor with edge-to-edge glass, active stylus support (MPP 2.0), anti-fingerprint coating and a flexible stand
MPP2.0 Support
Microsoft Pen Protocol (MPP) is a technology used in digital pens and styluses for use with compatible devices. The protocol enables the pen or stylus to interact with the device, allowing users to write, draw, and navigate on the screen. The 2.0 version is more responsive to the user's touch giving a more precise control when writing or drawing on the screen. It also supports tilt functionality, which allows the pen to detect the angle at which it is held, meaning the users can adjust the thickness and angle of their lines by tilting the pen, providing a more natural and intuitive writing and drawing experience.
Optical bonded PCAP
The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.

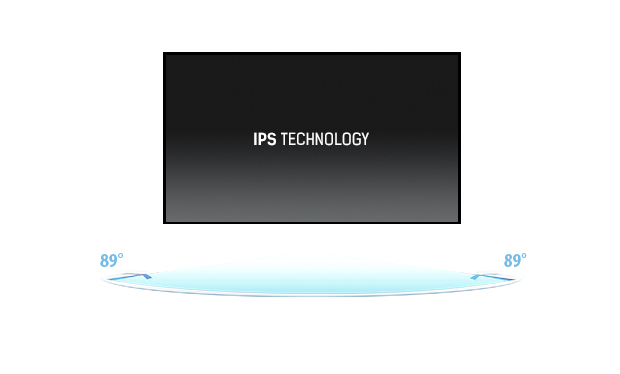

IPS Technology
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
QHD
With true QHD 2560 x 1440p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen, i.e. over 76% more in comparison to a 1920 x 1080 monitor.
Scratch resistance
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

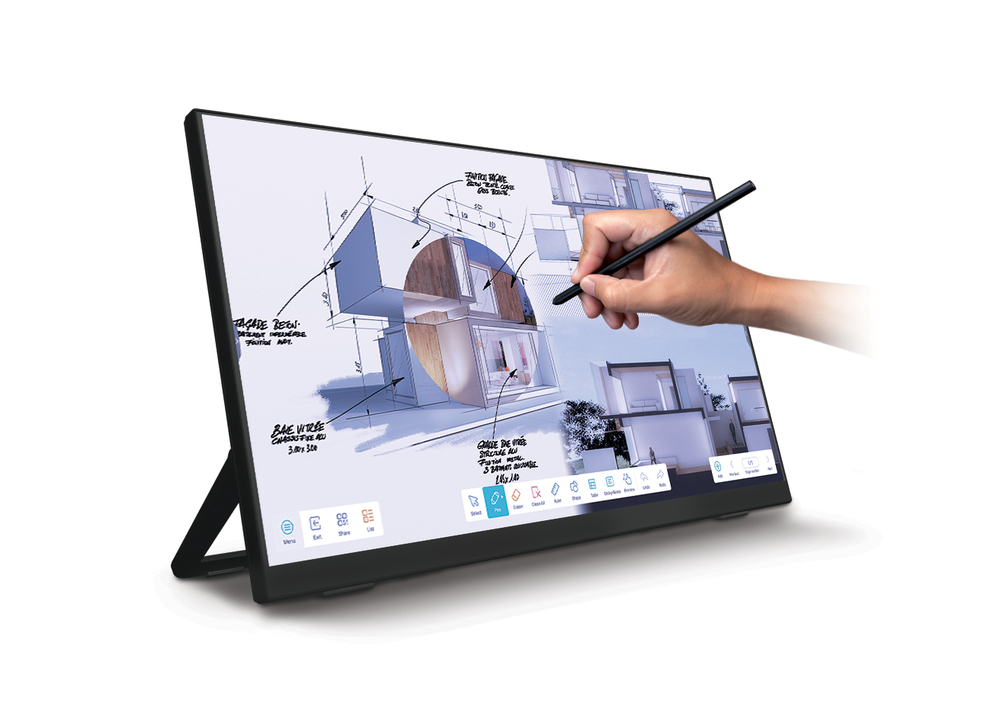

The ProLite T2755QSC with its WQHD (2560x1440) resolution and IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A special anti-fingerprint coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust and fingerprints. The monitor supports MPP2.0 (Microsoft Pen Protocol) technology, which is used in digital pens and styluses for use with compatible devices. The pen or stylus can interact with the ProLite T2755QSC, allowing users to write, draw, and navigate on the screen. It is very precise and supports tilt functionality, meaning the users can adjust the thickness and angle of their lines by tilting the pen, providing a more natural and intuitive writing and drawing experience. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. A perfect choice for a vast array of creative applications.
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 360 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| Maximum refresh rate | 75 Hz |
| HD type | Full HD |
| Display technology | LCD |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.233 x 0.233 mm |
| Horizontal scan range | 30 - 100 kHz |
| Viewable size, horizontal | 59.7 cm |
| Viewable size, vertical | 33.6 cm |
| Display resolution | 2560 x 1440 pixels |
| Response time | 5 ms |
| Display diagonal | 68.6 cm (27") |
| Contrast ratio (typical) | 1000:1 |
| Surface hardness | 7H |
| Display brightness (peak) | 400 cd/m² |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Display diagonal (metric) | 68.4 cm |
| Touchscreen technology | Projected capacitive system |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Built-in camera | No |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 10 |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian |
| Plug and Play | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Built-in camera | No |
| Design | |
| Market positioning | Business |
| Certification | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Product colour | Black |
| Front bezel colour | Black |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Type-A downstream ports quantity | 2 |
| Headphone out | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Touch port | Yes |
| Technical details | |
|---|---|
| HDMI | Yes |
| Product colour | Black |
| Front bezel colour | Black |
| Weight (with stand) | 5.8 kg |
| Surface hardness | 7H |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt angle range | 15 - 70° |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 10 |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian |
| Plug and Play | Yes |
| Tilt adjustment | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 35 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | D |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 17 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 1858859 |
| Weight & dimensions | |
| Width (with stand) | 614 mm |
| Depth (with stand) | 49 mm |
| Height (with stand) | 364.5 mm |
| Weight (with stand) | 5.8 kg |
| Package width | 710 mm |
| Package depth | 130 mm |
| Package height | 460 mm |
| Package weight | 7.3 kg |
| Packaging data | |
| Package width | 710 mm |
| Package depth | 130 mm |
| Package height | 460 mm |
| Package weight | 7.3 kg |
| Quick start guide | Yes |
| Cables included | HDMI, Power, USB |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | HDMI, Power, USB |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 1858859 |
| Other features | |
| Certification | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Quick start guide | Yes |
| HDMI | Yes |
| Surface hardness | 7H |
| Energy efficiency scale | A to G |
| Display brightness (peak) | 400 cd/m² |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| USB Power Delivery (USB PD) | Yes |
| Front bezel colour | Black |
| Certificates | |
| Certification | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
