Be the first to review this product
iiyama ProLite 27’’ 4K IPS technology panel with RJ45 (LAN), KVM Switch and USB-C Dock with 96W power delivery
In stock
SKU
XUB2797UHSNP-B1
27’’ 4K IPS technology panel with RJ45 (LAN), KVM Switch and USB-C Dock with 96W power delivery

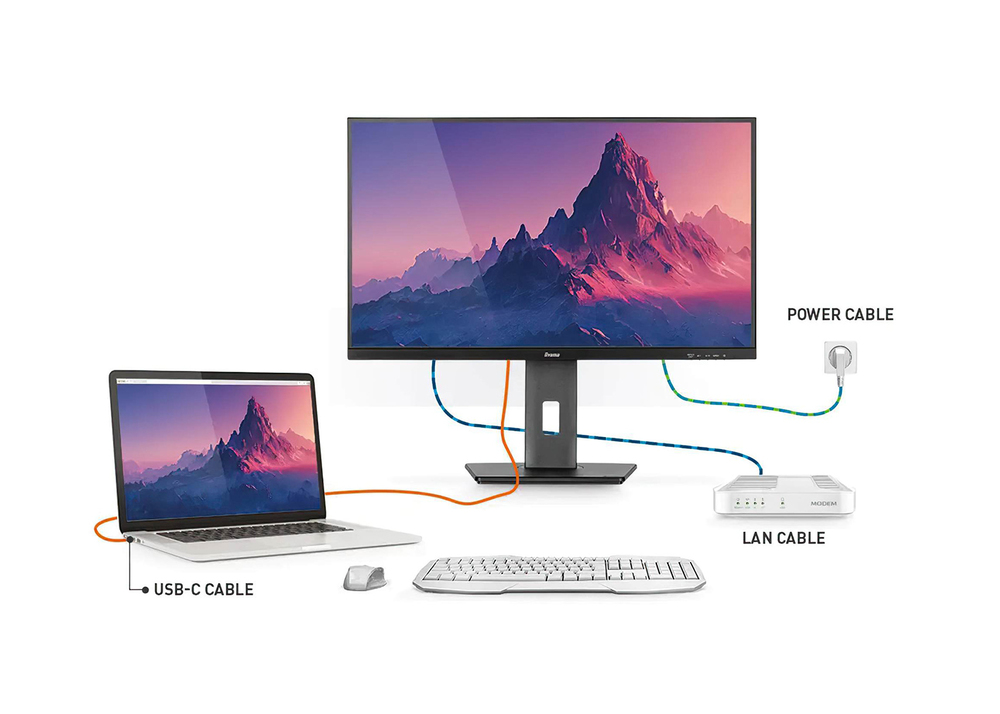

USB-C Dock
The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. A second monitor can be connected to the DisplayPort (MST) output to create a multi-monitor set-up. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor. *Functions vary depending on your laptop USB-C support.
KVM SWITCH
Having a monitor with a KVM switch allows you to share the devices connected via USB to your monitor with two different PCs. Just change the signal input in the OSD menu of the monitor and your keyboard, mouse and webcam will switch from your work laptop to your gaming PC.

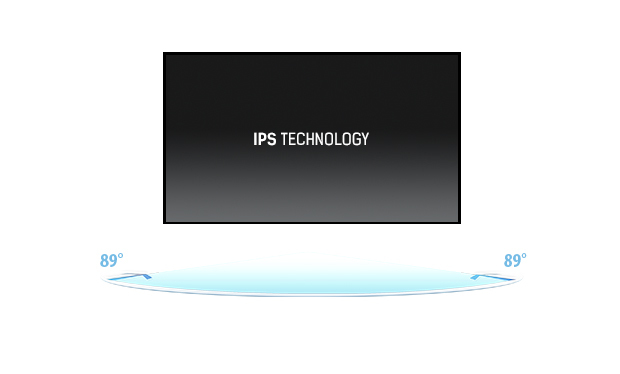

IPS Technology
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
4K
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.
PIP
PIP (Picture in Picture) function allows you to watch images coming from two different sources at the same time.
Discover the XUB2797UHSNP, a 27’’ 4K IPS panel equipped with USB-C dock (96W PD), KVM switch, and RJ45 for LAN connectivity. The KVM switch allows to connect multiple computers through a single console. Get rid of cable clutter with the USB-C dock that carries all data (audio and video) whilst powering your notebook. Easily extend your desktop by creating a dual-monitor set-up with the DisplayPort output. Enjoy accurate colours and wide viewing angles thanks to the IPS panel. Benefit from exceptional performance for tasks like photography and web design, thanks to the 4K resolution and high contrast. The ergonomic stand offers a height adjustment of 150mm and tilt/swivel mechanisms for portrait mode, optimizing comfort while working with extensive data sheets
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 350 cd/m² |
| Screen shape | Flat |
| Display number of colours | 1.07 billion colours |
| Native aspect ratio | 16:9 |
| Maximum refresh rate | 60 Hz |
| sRGB coverage (typical) | 99% |
| Display surface | Matt |
| HD type | 4K Ultra HD |
| Display technology | LED |
| Contrast ratio (dynamic) | 80000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.155 x 0.155 mm |
| Horizontal scan range | 30 - 140 kHz |
| Viewable size, horizontal | 59.7 cm |
| Viewable size, vertical | 33.6 cm |
| Display resolution | 3840 x 2160 pixels |
| Response time | 4 ms |
| Display diagonal | 68.6 cm (27") |
| Contrast ratio (typical) | 1300:1 |
| NTSC coverage (typical) | 72% |
| Touchscreen | No |
| Panel type | IPS |
| Colour depth | 8 bit |
| Display diagonal (metric) | 68.5 cm |
| Colour gamut standard | NTSC, sRGB |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Headphone out | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| HDMI version | 2.0 |
| DisplayPort out version | 1.2 |
| Ethernet LAN | Yes |
| Technical details | |
|---|---|
| Height (without stand) | 397.5 mm |
| Depth (without stand) | 209.5 mm |
| Width (without stand) | 614.5 mm |
| Cable lock slot | Yes |
| HDMI | Yes |
| Product colour | Black |
| Warranty period | 5 year(s) |
| Power supply type | Internal |
| Weight (with stand) | 6.7 kg |
| Touchscreen | No |
| Network | |
| Ethernet LAN | Yes |
| Ergonomics | |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Swivelling | Yes |
| Swivel angle range | 90 - 45° |
| Tilt angle range | 23 - 5° |
| Pivot | Yes |
| On Screen Display (OSD) | Yes |
| Pivot angle | 90 - 90° |
| On Screen Display (OSD) languages | Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Power | |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 33 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 26 kWh |
| Weight & dimensions | |
| Height (without stand) | 397.5 mm |
| Depth (without stand) | 209.5 mm |
| Width (without stand) | 614.5 mm |
| Width (with stand) | 614.5 mm |
| Depth (with stand) | 209.5 mm |
| Height (with stand) | 547.5 mm |
| Weight (with stand) | 6.7 kg |
| Package width | 688 mm |
| Package depth | 138 mm |
| Package height | 463 mm |
| Package weight | 9.2 kg |
| Packaging data | |
| Package width | 688 mm |
| Package depth | 138 mm |
| Package height | 463 mm |
| Package weight | 9.2 kg |
| Package type | Box |
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, HDMI, USB, USB Type-C |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, DisplayPort, HDMI, USB, USB Type-C |
| Other features | |
| Warranty period | 5 year(s) |
| Height (without stand) | 397.5 mm |
| Depth (without stand) | 209.5 mm |
| Width (without stand) | 614.5 mm |
| Quick start guide | Yes |
| HDMI | Yes |
| Energy efficiency scale | A to G |
| Power supply type | Internal |
| Ethernet LAN | Yes |
| Touchscreen | No |
| Package type | Box |
