ARCTIC Freezer 4U-SP5 - 4U Server Cooler for AMD SP5
In stock
SKU
ACFRE00158A
AMD, 4U, 300-3300 RPM, 2x 120 mm PWM, 45.3 dBA, 124 x 147 x 145 mm, 1512 g
| SKU | ACFRE00158A |
|---|---|
| EAN | 4895213704656 |
| Manufacturer | ARCTIC |
| Availability | In Stock |
| Product Family | Freezer |
| PDF URLs |
View PDF |

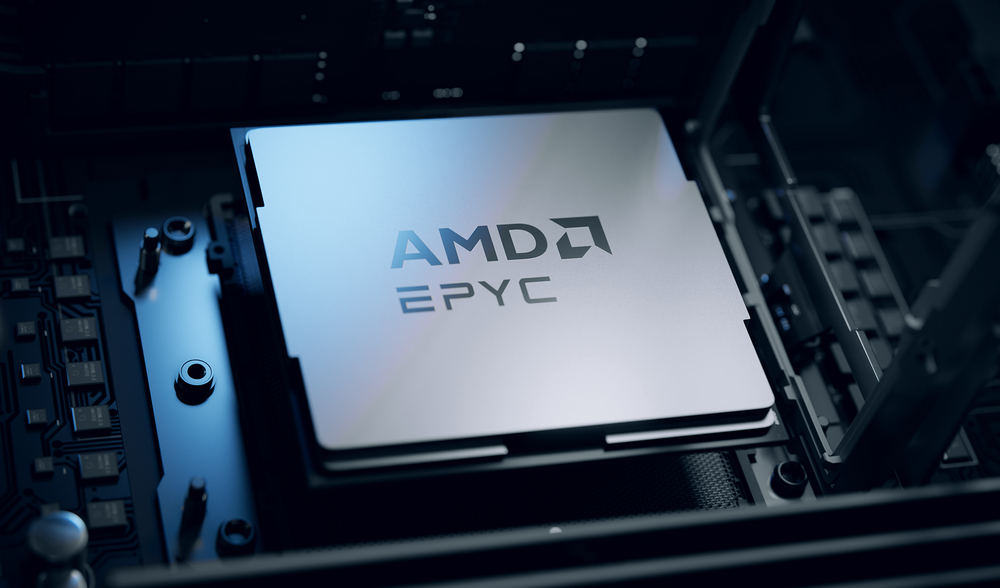

Server Cooler specifically designed for AMD SP5
The Freezer 4U-SP5 is specially designed for Socket SP5 and supported EPYC processors. With a maximum power consumption of only 6.96 W, the Freezer 4U-SP5 cools even the most powerful AMD processors with 128 cores and 360 W TDP extremely efficiently.

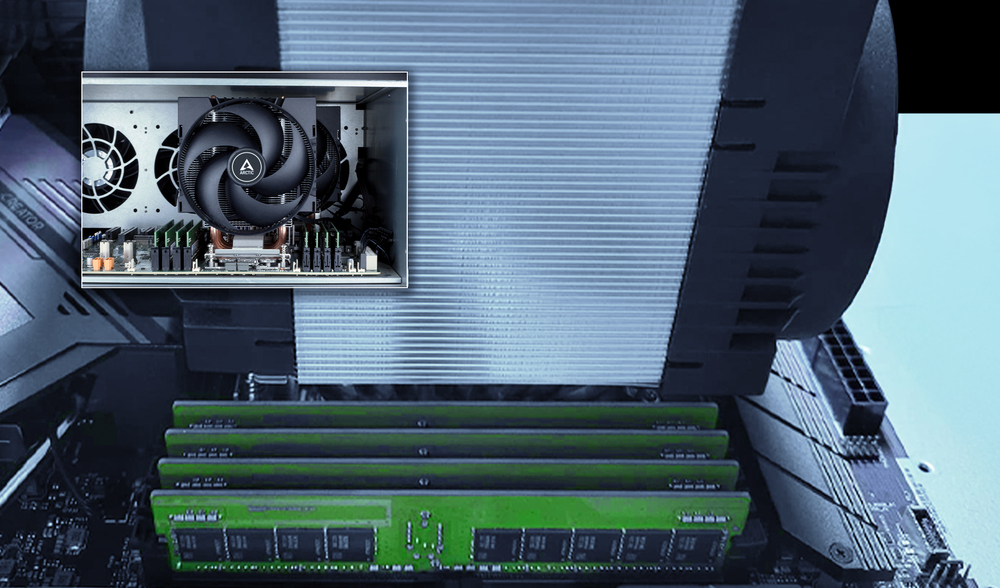

RAM Compatibility and Clearance
The Freezer 4U-SP5 offers a spacious 53 mm of RAM clearance, allowing for the use of memory sticks with moderate heatsinks. This clearance allows efficient airflow and enables compatibility with different RAM variants.

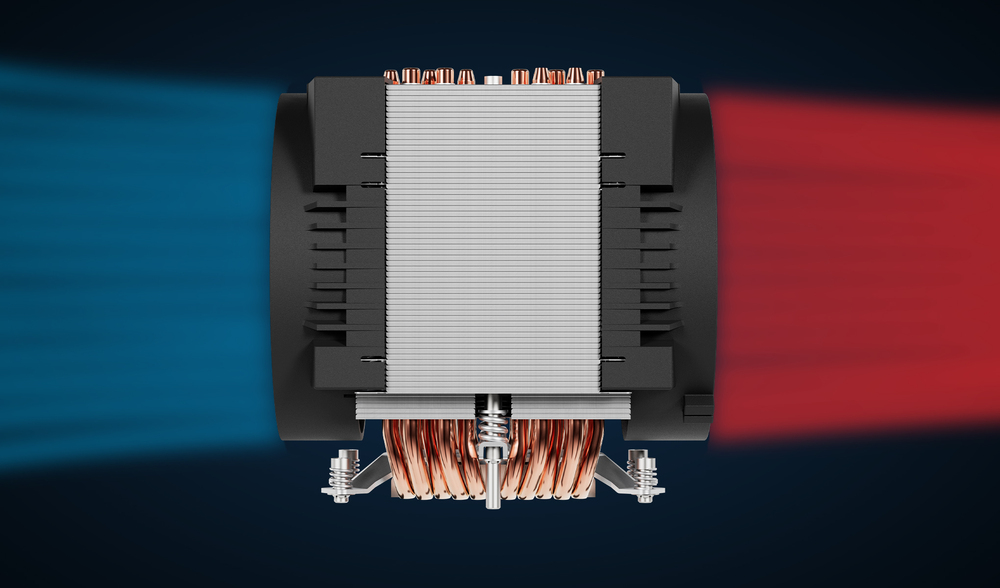

Powerful Fans in Push-Pull Configuration
The installed PWM fans benefit from all the advantages of the award-winning P series. Designed for static pressure, the fans are ideal for the Freezer 4U-SP5's high fin density and provide efficient heat dissipation in push-pull mode, even in power-hungry applications. Especially office workstations benefit from the quiet fans. The dual configuration also allows for inherent redundancy and protects the system from total shutdown caused by heat.

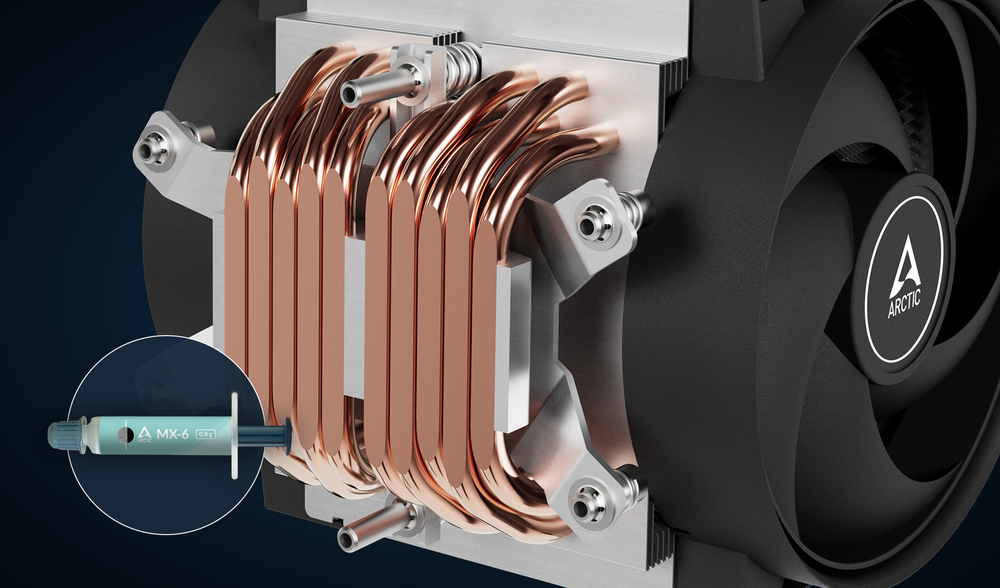

Premium Thermal Paste Included
The Freezer 4U-SP5 comes with MX-6 thermal paste. ARCTIC's Ultimate Performance thermal paste reduces the heat build-up between the heat spreader of the CPU and the cooler. The thermal paste is neither conductive nor capacitive and therefore absolutely safe to use.

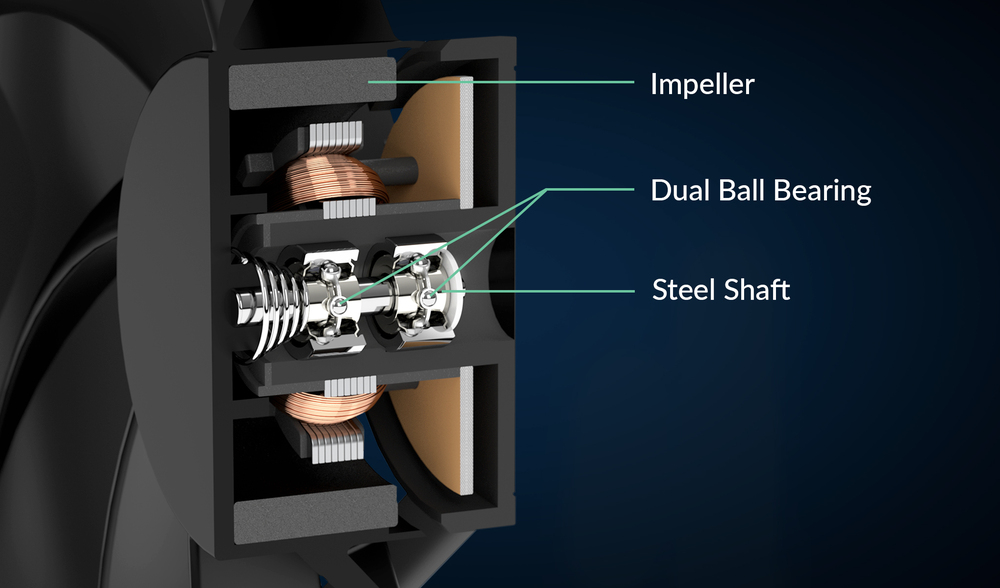

Designed for Continuous Operationn
Both fans of the Freezer 4U-SP5 are equipped with dual ball bearings, which allows for 24/7 continuous operation without the slightest compromise in performance. This type of bearing is much more resistant to contamination and wear caused by high temperatures than conventional sleeve bearings or Fluid-Dynamic bearings and is therefore the perfect choice if you want to ensure fault-free continuous operation.
Efficient, reliable, durable and quiet – the demands on server cooling are high. ARCTIC has developed specialised solutions for continuous operation that ensure the reliable performance of servers and workstations. Our fans deliver high performance and set new standards in energy efficiency.
| Performance | |
|---|---|
| Suitable location | Processor |
| Fan connector | 4-pin |
| Number of fins | 62 |
| Fins material | Aluminium |
| Bearing type | Dual ball bearing |
| Thermal Design Power (TDP) | 360 W |
| Number of heat pipes | 10 |
| Heat pipes diameter | 6 mm |
| Type | Air cooler |
| Operating temperature (T-T) | 0 - 40 °C |
| Fan diameter | 12 cm |
| Supported processor sockets | Socket SP5 |
| Maximum airflow | 81.04 cfm |
| Airflow | 137.69 m³/h |
| Rack capacity | 4U |
| Number of fans | 2 fan(s) |
| Fan noise level (max) | 45.3 dB |
| Fan static pressure | 4.35 mmH2O |
| Fan speed (min) | 300 RPM |
| Fan speed (max) | 3300 RPM |
| Design | |
| Fan connector | 4-pin |
| Number of fins | 62 |
| Fins material | Aluminium |
| Number of heat pipes | 10 |
| Rack capacity | 4U |
| Number of fans | 2 fan(s) |
| Product colour | Aluminium, Black |
| Cable length | 0.2 m |
| Technical details | |
| Thermal Design Power (TDP) | 360 W |
| Number of heat pipes | 10 |
| Heat pipes diameter | 6 mm |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | Socket SP5 |
| Maximum airflow | 81.04 cfm |
| Airflow | 137.69 m³/h |
| Rack capacity | 4U |
| Number of fans | 2 fan(s) |
| Cable length | 0.2 m |
| Fan connector | 4-pin |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Starting voltage | 3.1 V |
| Thermal Design Power (TDP) | 360 W |
| Fan voltage | 12 V |
| Fan current | 0.29 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Colour | |
| Product colour | Aluminium, Black |
| Weight & dimensions | |
| Package depth | 206 mm |
| Package width | 160 mm |
| Package height | 141 mm |
| Heat pipes diameter | 6 mm |
| Width | 147 mm |
| Package weight | 1.56 kg |
| Depth | 124 mm |
| Height | 145 mm |
| Weight | 1.51 kg |
| Cable length | 0.2 m |
| Packaging data | |
| Package depth | 206 mm |
| Package width | 160 mm |
| Package height | 141 mm |
| Package weight | 1.56 kg |
| Package type | Box |
| Packaging content | |
| Package type | Box |
